Conforme sugerido pelo nosso amigo P 39. O ‘Frontier’, ex ‘Daewoo Frontier’, ‘Repubblica di Genova’ poderia se encaixar (ou não), por suas características, como um digno Aplog (Navio de Apoio Logístico), para planos futuros de projeção de poder ou mesmo de assistência ultramarina do Brasil, em casos de necessidades “around the world”.

Como exemplo desta classe, com dois navios no mercado (independentemente de existirem intenções de venda), qual a opinião do leitor, ou qual sua sugestão para a função ?

M/V Frontier, ex Daewoo Frontier, Repubblica di Genova

Shipbuilder Name

Built

Keel Laid

Launched

Alteration Date

Alterations

FINCANTIERI STABIA

1988-08

1987-05-11

1987-12-16

1990-12

Lengthened,

Newbuild Sections

Shipbuilder Name

Yard No

Type

Material

Launched

Completed

Commissioned

01

FINCANTIERI STABIA

5837

WHOLE SHIP

Steel (Unspecified)

0000-00-00

1988-08-26

0000-00

Deadweight

25,450

Gross

42,567

Net Registered

12,770

System

New System (International 1969)

Type

One tonnage, unspecified

Compensated Gross

0

Panama Canal Net

0

Suez Canal Net

0

Light Displacement

15,796

Dimensions

Draught

9.302

KTMH

0

Depth

19.500

Length Overall

216.060

Length (BP)

197.000

Breadth Extreme

30.430

Breadth Moulded

30.400

Specialist Details  (Dry Cargo, Liquid, Passenger, Ro-ro, Unitised Cargo, Other)

Dry Cargo [top]

Bale

0

Grain

0

Ore

Decks

1

Gear Summary

2xCRANE at 35.00t SWL

Passenger [top]

Berths

57

Cabins

0

Passengers

0

Ro-ro [top]

Lane Length

2,389

Clear Height Lanes

6.20

Number of Ramps

2

Railcars

Trailers

Cars

3666

Ramps

1 STARBOARD 35.00×8.00×150(LxWxSWL), 1 STARBOARD AFT 12.50×3.00×0(LxWxSWL)

Unitised Cargo [top]

Container Arrangement

TEU 1116 incl ref C.

TEU

1,116

TEU@14t

0

Reefer Points

0

Insulated

0

Engine Details

Summary

Propulsion

Screw

Service Speed

Consumption

OIL ENGINE(S), DIRECT DRIVE

SINGLE-SCREW

18.00

0

Builder

Type

Position

Make

Model

BHP

KW

RPM

Grandi Motori Trieste – Trieste

Oil Engine

CENTRE OR ONLY

Sulzer

8RTA58

17,281

12,710

127

Propellers

Position

Type

CENTRE OR ONLY

PROPELLER : CONTROLLABLE PITCH

Thrusters

Position

Type

FORWARD

Thwart. FP thruster

AFT

Thwart. FP thruster

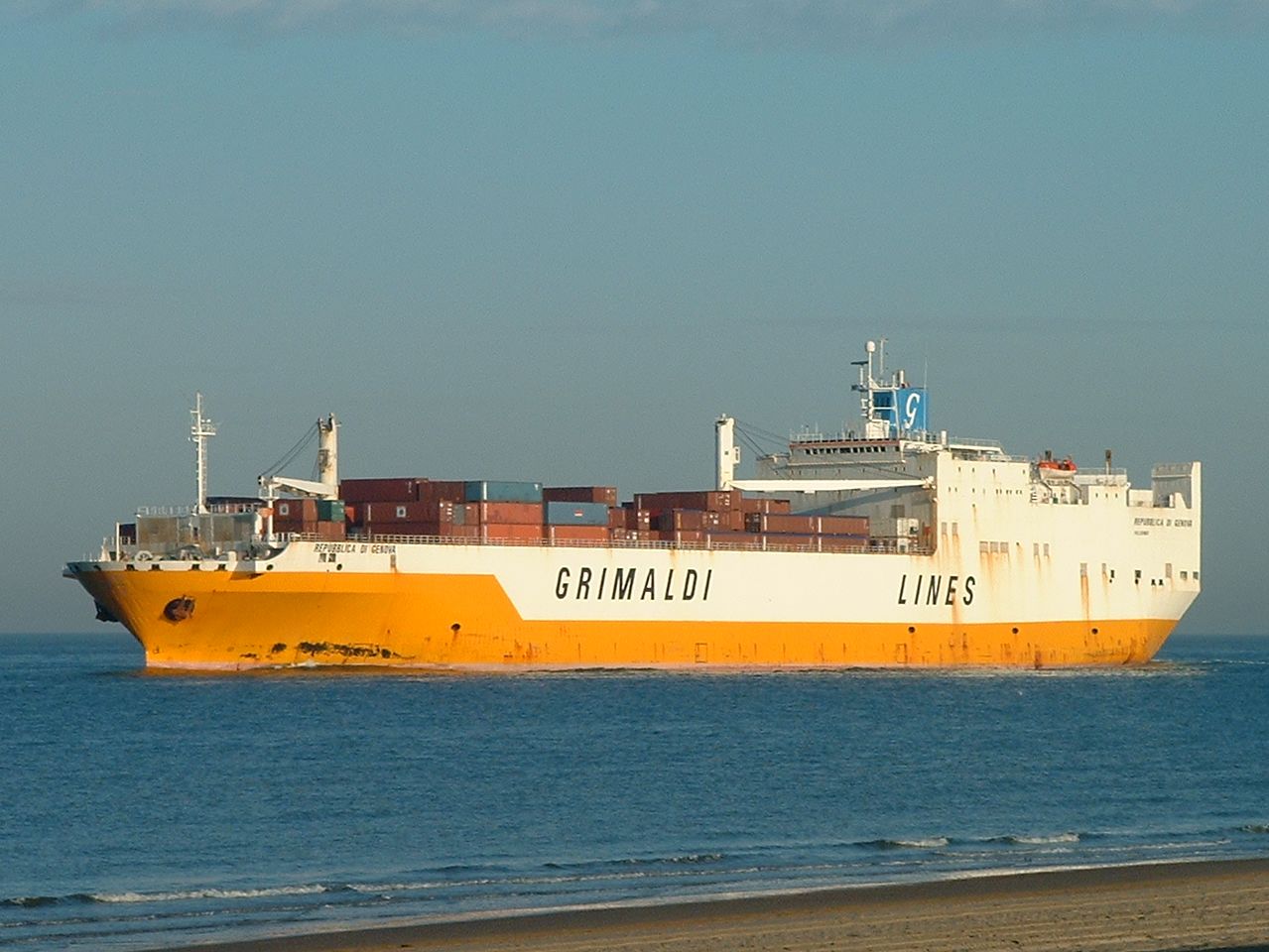

FOTO: Drans Sanderse – Shipspotting
